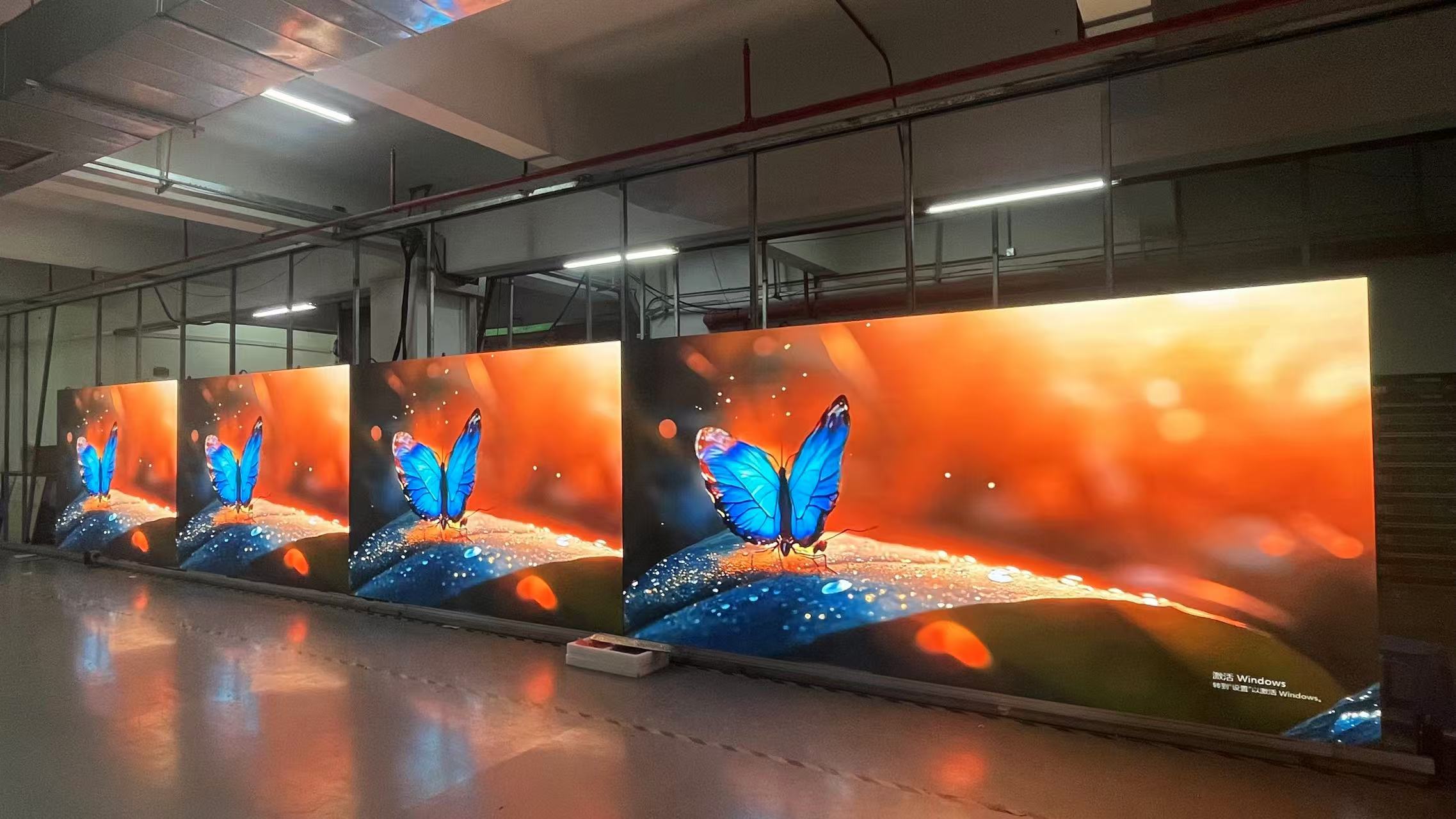

Factory Testing Protocol: Ensuring Perfection for a 32㎡ P2.5 Indoor LED Display

Before a 32-square-meter P2.5 indoor LED display is approved for shipment, it undergoes a rigorous and systematic factory testing protocol designed to guarantee flawless performance, reliability, and longevity. This process is far more than a simple power check; it is a comprehensive validation of every pixel, module, and system component under simulated real-world conditions.

The journey begins with a 72-hour aging test (Burn-in Test). The fully assembled display operates continuously at maximum brightness, cycling through a sequence of pure red, green, blue, white, and black screens. This critical stress test accelerates the identification of any weak or early-failing LEDs, drivers, or power supplies, ensuring infant mortality issues are resolved on the factory floor.

Following aging, technicians conduct a meticulous visual and functional inspection. Using specialized calibration equipment and software, every single pixel on the vast 32㎡ canvas is examined for defects such as dead pixels, inconsistent brightness, or color deviation. The P2.5 fine pixel pitch demands exceptional precision; advanced colorimetric instruments verify uniform color temperature and grayscale performance across the entire display surface. Key parameters like refresh rate (≥3840Hz), brightness uniformity (≥97%), and color consistency are measured and logged against stringent factory standards.

The final phase involves system-level stress and compatibility testing. The display is subjected to repeated power cycling, signal source switching, and prolonged playback of high-speed, high-contrast video content to assess the stability of the receiving cards, processors, and firmware. Thermal imaging confirms the efficacy of the cooling system, ensuring stable operation even during extended use.

Only after passing every checkpoint in this multi-stage protocol is the 32㎡ P2.5 display certified for packing. This exhaustive testing regimen is our commitment to delivering a product that offers not just stunning visuals, but also the unwavering reliability our clients expect for their mission-critical installations.
